This is an article about the JavaFX Scene Builder. You will get a short introduction about the installation and usage of the software. The article contains also a short introduction to FXML.

1. Introduction

The JavaFX Scene Builder is a tool that lets you design JavaFX application user interfaces without coding. Users can drag and drop UI components to a work area, modify their properties, apply style sheets, and the FXML code for the layout that they are creating is automatically generated in the background. The result is an FXML file that can then be combined with a Java project by binding the UI to the application.

JavaFX Scene Builder includes the following key features:

A drag-and-drop interface allows you to quickly create a UI layout without the need to write source code.
You can add, combine, and edit JavaFX UI controls to your layout by using the library of UI controls and the content panel.
Integration with any Java IDE is easy since it is a standalone development tool.
Automatic FXML code generation occurs as you build and modify your UI layout.
The generated FXML code is stored in a separate file from the application logic source and style sheet files.
Live editing and preview features let you quickly visualize the UI layout changes that you make without the need to compile.
Access to the complete JavaFX 2.2 UI controls library is provided.
CSS support enables flexible management of the look and feel of your application’s UI.

2. Installation

The installation of the Scene Builder 1.1 consists of the following Steps:

Go to the JavaFX Scene Builder Archive and download your package, which depends on the used Operating System.

If you are using windows, double click the setup file. Thereafter the following Dialog appears:

Start the Setup of the JavaFX Scene Builder

After a click on the Next Button, you can change your Destination Folder, if you want:

Choose the Destination Folder of the JavaFX Scene Builder

Thereafter, the selected Destination Folder will be shown:

Verify the Destination Folder of the JavaFX Scene Builder

After a click on the Finish Button, your Setup is complete.

Finish the Setup of the JavaFX Scene Builder

Now you can use the Scene Builder.

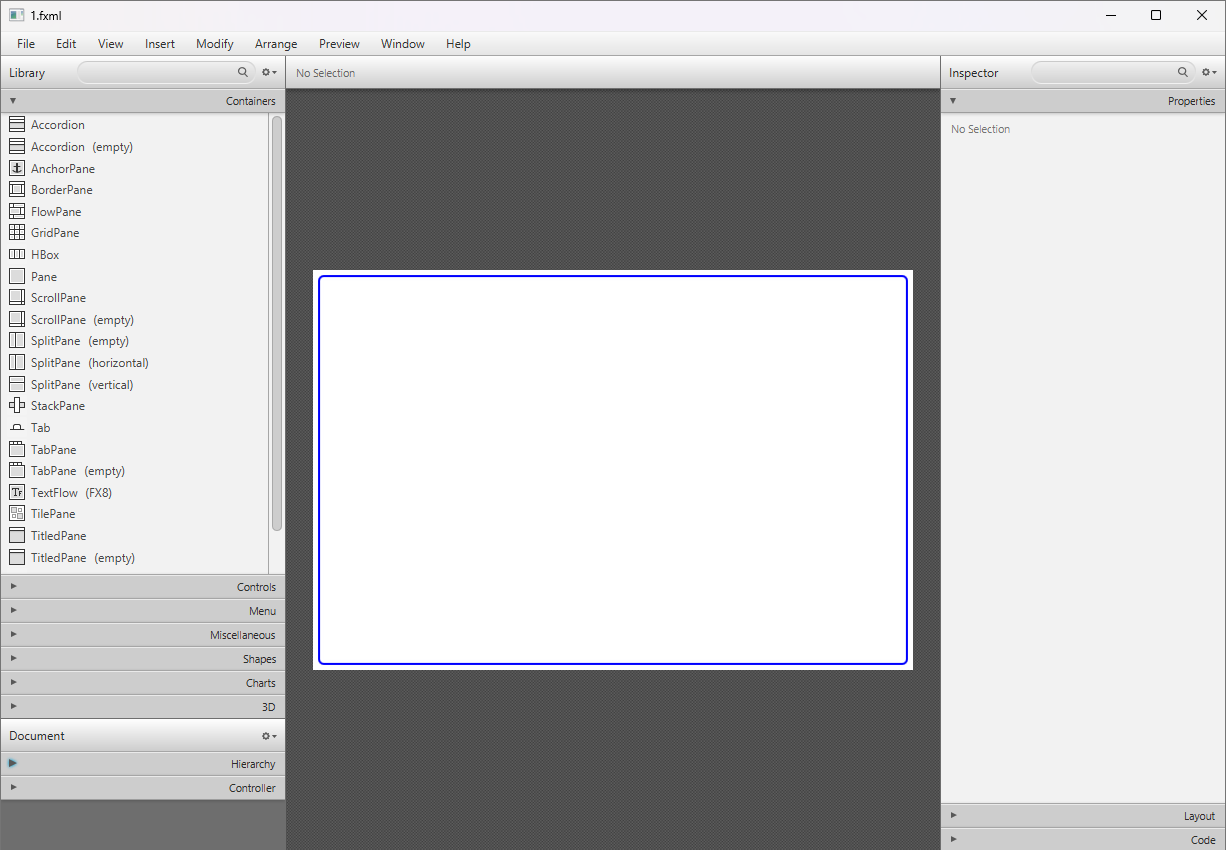

The GUI of the JavaFX Scene Builder

By default, the main window of JavaFX Scene Builder includes the following sections:

Menu Bar
Path, Selection and Message Bar
Content Panel
Library Panel
Document Panel
Inspector Panel

The Menu Bar provides access to the menu of commands available in JavaFX Scene Builder.

The Path, Selection and Message Bar displays the path to a selected element and allows you to select an element to put into focus. It also displays any error or status messages.

The Content Panel represents the scene container for the GUI elements that make up your FXML layout. By default, a new empty FXML file is opened in JavaFX Scene Builder.

The Library Panel lists the available JavaFX GUI elements or controls, including custom controls, that you can use to build your FXML layout. You select the GUI elements from this panel and add them to the Content panel or the Hierarchy panel.

The Document Panel contains the Hierarchy and Controller sections. The Hierarchy section displays a tree view representation of the FXML layout that you are building in the Content panel. Elements that are not visible in the Content panel can be placed into focus by selecting it in the Hierarchy panel. The Controller section enables you to manage the controller source information and gives information about assigned fx:id values.

The Inspector Panel contains the Properties, Layout, and Code sections. The Properties and Layout sections help you manage the properties of the currently selected GUI element in the Content panel or in the Hierarchy panel. The Code section enables you to manage the event handling actions to use for the selected GUI element. The Inspector panel also contains a Search text field that enables you to isolate specific properties that you want to modify.

4. FXML

FXML is an XML-based language designed to build the user interface for JavaFX applications. You can use FXML to build an entire scene or part of a scene. FXML allows application developers to separate the logic for building the UI from the business logic. You still use JavaFX to write business logic using the Java language. An FXML document is an XML document.

A JavaFX scene graph is a hierarchical structure of Java objects. XML format is well suited for storing information representing some kind of hierarchy. It is common to use FXML to build a scene graph in a JavaFX application. However, the use of FXML is not limited to building only scene graphs. It can build a hierarchical object-graph of Java objects.

An FXML document is simply a text file. Typically, the file name has a .fxml extension (e.g., TextAreaExample.fxml).

In the following chapters you will generate a scene using the Scene Builder. Additionally, the corresponding parts of FXML will be discussed.

5. Your first Example

Now, let´s create a simple example using the JavaFX Scene Builder. We will create a VBox which contains a Label for the In- and Output, a Button, a TextField and a TextArea.

5.1 Adding UI Elements

The root element of the FXML document is the top-level object in the object-graph. Our top-level object is an AnchorPane.

At first we add the VBox to the AnchorPane. This can be done via Drag and Drop of the Object from the Containers.

Adding a VBox to the AnchorPane

5.2 Setting Properties to an Object

You can set properties for Java objects in FXML. There are two ways to set properties:

Using attributes of an FXML element
Using property elements

5.2.1 Setting the Style Properties to an Object

In the Hierarchy panel, select the VBox element and click the Properties section of the Inspector panel.

In our example. the following properties were inserted into the Style Text Field.

1

2

3

4

5

6

-fx-padding: 10;
-fx-border-style: solid inside;
-fx-border-width: 2;
-fx-border-insets: 5;
-fx-border-radius: 5;
-fx-border-color: blue;

5.2.2 Setting the Width and Height Properties to an Object

In the Hierarchy panel, select the VBox element and click the Layout section of the Inspector panel. In this example, the Preferred Width and the Preferred Height was set to 300px.

Setting the Width and Height Properties for the VBox

5.2.3 Assigning an Identifier to an Object

An object created in FXML can be referred to somewhere else in the same document. It is common to get the reference of UI objects created in FXML inside the JavaFX code. You can achieve this by first identifying the objects in FXML with an fx:id attribute. The value of the fx:id attribute is the identifier for the object. If the object type has an id property, the value will be also set for the property. Note that each Node in JavaFX has an id property that can be used to refer to them in CSS.

In the Hierarchy panel, select the VBox element and click the Code section of the Inspector panel. In this example, the Identifier was set to vbox.

Assigning an Identifier to the VBox

5.3 Adding the other UI Elements

Now we have to add the other necessary elements to the VBox to finish our example. This step includes also the setting of the Properties, which were already discussed. At first we add a Label.

Insert a Label to the VBox

Thereafter we add a TextField for the Input:

Insert a TextField to the VBox

Now, let´s add a Button which handles the necessary ActionEvent.

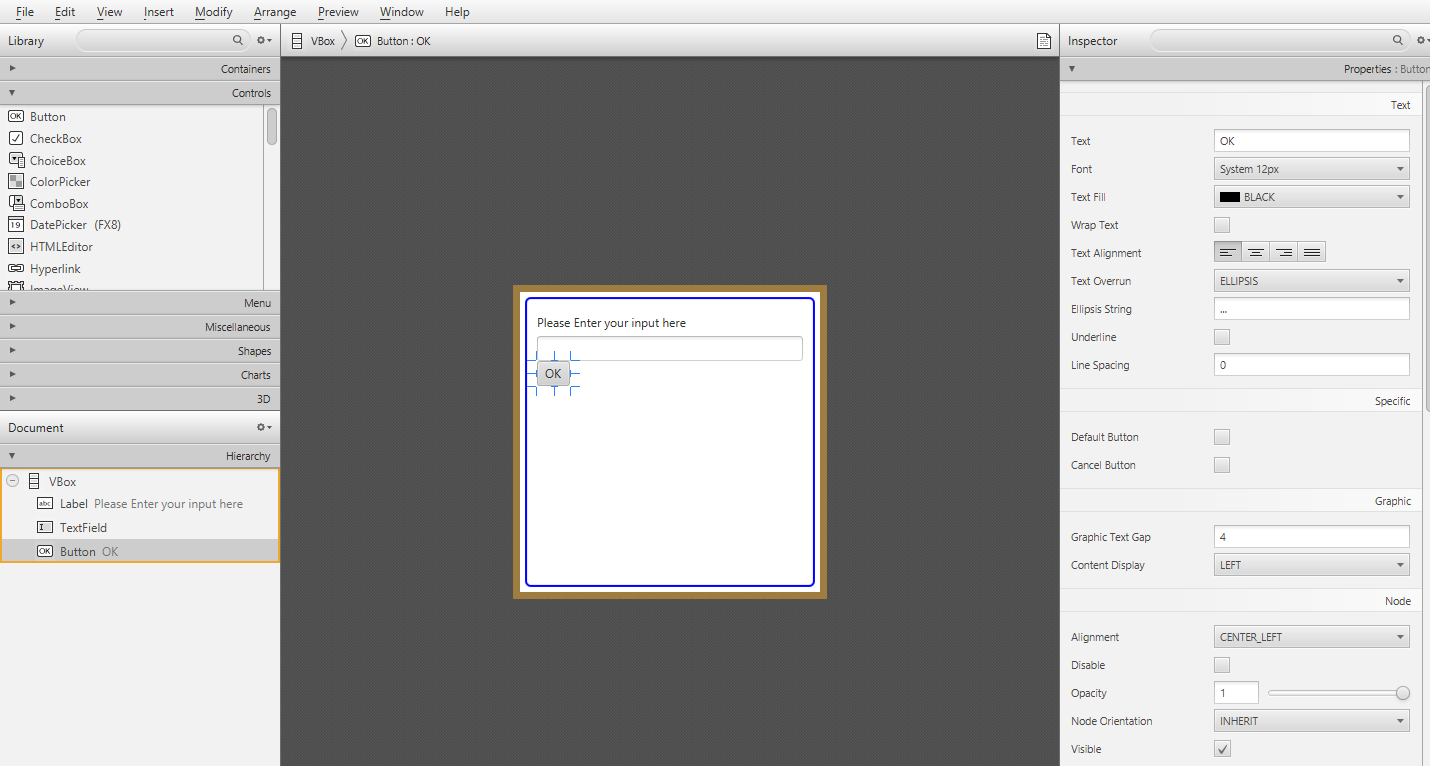

Insert a Button to the VBox

So we add a second Label as Head for the Output:

Insert a second Label to the VBox

And finally, we have to add a TextArea, which contains and display our input.

Insert a TextArea to the VBox

Let´s save the example by using the “Save As” Menu Entry in the File Menu. Choose a directory and save the scene as TextAreaExample.fxml.

5.4 Preview of your Design

You can always make a Preview in the Scene Builder about your current design under usage of the “Show Preview in Window” Menu Entry in the “Preview” Menu.

5.5 The Generated FXML Source Code

If you open the created FXML File with an editor, you will see the following FXML Code:

TextAreaExample.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import java.lang.*?>
<?import java.util.*?>
<?import javafx.scene.control.*?>
<?import javafx.scene.layout.*?>
<?import javafx.scene.paint.*?>

<AnchorPane id="AnchorPane" fx:id="pane" disable="false" maxHeight="-Infinity" maxWidth="-Infinity" minHeight="-Infinity" minWidth="-Infinity" prefHeight="400.0" prefWidth="600.0" xmlns:fx="http://javafx.com/fxml/1" xmlns="http://javafx.com/javafx/2.2">
  <children>
    <VBox fx:id="vbox" layoutX="190.0" layoutY="73.0" prefHeight="250.0" prefWidth="300.0" style="-fx-padding: 10;
-fx-border-style: solid inside;
-fx-border-width: 2;
-fx-border-insets: 5;
-fx-border-radius: 5;
-fx-border-color: blue;">
      <children>
        <Label fx:id="inputLbl" alignment="CENTER_LEFT" cache="true" cacheHint="SCALE" prefHeight="29.0" prefWidth="206.0" text="Please insert Your Input here:" textAlignment="LEFT" />
        <TextField fx:id="inputText" prefWidth="167.0" />
        <Button fx:id="okBtn" alignment="CENTER_RIGHT" contentDisplay="CENTER" mnemonicParsing="false" text="OK" textAlignment="CENTER" />
        <Label fx:id="outputLbl" text="Your Input:" />
        <TextArea fx:id="outputText" prefHeight="93.0" prefWidth="221.0" wrapText="true" />
      </children>
    </VBox>
  </children>
</AnchorPane>

6. Loading FXML Documents

An FXML document defines the view (the GUI) part of a JavaFX application. You need to load the FXML document to get the object-graph it represents. Loading an FXML is performed by an instance of the FXMLLoader class, which is in the javafx.fxml package. The FXMLLoader class provides several constructors that let you specify the location, charset, resource bundle, and other elements to be used for loading the document. You need to specify at least the location of the FXML document, which is a URL. The class contains load() methods to perform the actual loading of the document.

6.1 The Code

The following snippet of code loads an FXML document from a local file system in Windows:

TextAreaExample.java

import java.io.FileInputStream;
import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Scene;
import javafx.scene.layout.AnchorPane;
import javafx.stage.Stage;

public class TextAreaExample extends Application
{
    public static void main(String[] args)
    {
        Application.launch(args);
    }

    @Override
    public void start(Stage stage) throws IOException
    {
        // Create the FXMLLoader
        FXMLLoader loader = new FXMLLoader();
        // Path to the FXML File
        String fxmlDocPath = "Path-To-Your-FXML-Files/TextAreaExample.fxml";
        FileInputStream fxmlStream = new FileInputStream(fxmlDocPath);

        // Create the Pane and all Details
        AnchorPane root = (AnchorPane) loader.load(fxmlStream);

        // Create the Scene
        Scene scene = new Scene(root);
        // Set the Scene to the Stage
        stage.setScene(scene);
        // Set the Title to the Stage
        stage.setTitle("A SceneBuilder Example");
        // Display the Stage
        stage.show();
    }
}

FXMLLoader supports loading a FXML document using an InputStream. The following snippet of code loads the same FXML document using an InputStream.

// Create the FXMLLoader
FXMLLoader loader = new FXMLLoader();
// Path to the FXML File
String fxmlDocPath = "Path-To-Your-FXML-Files/TextAreaExampleController.fxml";
FileInputStream fxmlStream = new FileInputStream(fxmlDocPath);

// Create the Pane and all Details
AnchorPane root = (AnchorPane) loader.load(fxmlStream);
